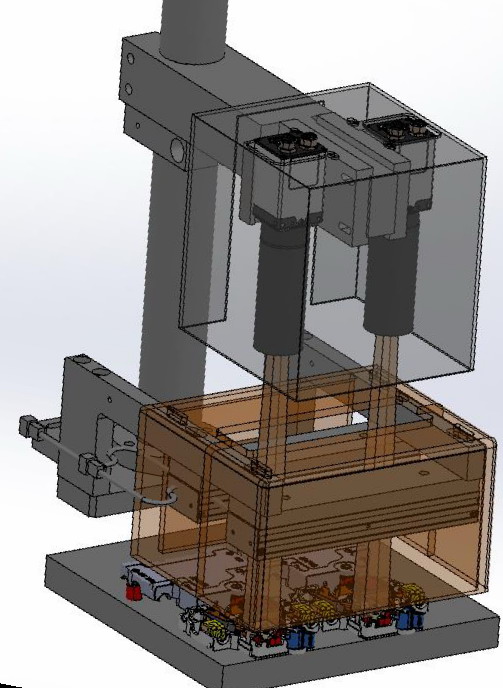

It is applied to the detection of miniature circuit breaker automatic production line components after assembly. By using 2D and 3D camera, it can detect the installation position of each component in the plane and height direction.

Inspected parts: arc extinguishing chamber, magnetic system, adjusting screw assembly, wiring base, large u, moving iron core, snap, small U, etc.

Test items: missing parts, too many parts, parts not installed in place, snap hook damaged, etc.
